Collaborative Robots
Collaborative Robots

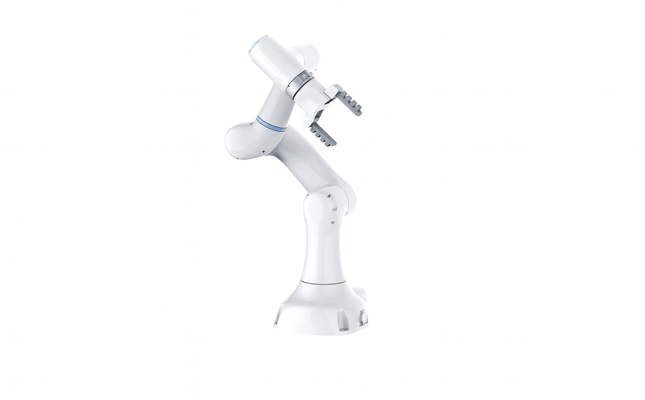

Collaborative robots or cobots, are industrial robots designed to work safely alongside humans in a shared workspace. Unlike traditional robots that require safety cages or barriers, cobots use advanced sensors, force control, and vision systems to ensure safe interaction with people.
They are widely used in industries such as manufacturing, logistics, electronics, healthcare, and food processing.Alljoints are equipped with high-precision torque sensors, achieving ultra-sensitive force detection to fully
avoid accidental contact and injury, ensuring safe operation.
Safety and Compliance, Ease of Use, Flexibility, Precision and Repeatability, Connectivity and Integration
Functions & Features
Highest Safety All-around Protection All joints are equipped with high-precision torque sensors, achieving ultra-sensitive force detection to fully
avoid accidental contact and injury, ensuring safe operation.
- 5x increased collision sensitivity
- 21 TÜV safety certifications
- Independent RSC design, dual-channel monitoring
- Magnetic brake for reliable safety
- Human-machine collaboration for top efficiency
- Complies with international safety standards
Light and Agile Stylish and Friendly Innovative design for maximum lightness and agility.
Friendly user experience breaks robot stereotypes.
- Rounded curves convey liveliness
- Fresh colors are pleasing
- Simple design shows elegance
Simple and Easy. Zero Learning Curve Achieve ultimate ease of use and deployment,
allowing even those with no prior experience
to quickly complete installation and setup.
- 1N Ultra-light drag-and-drop programming, easily handle complex paths.
- Graphical interface, master in 1 hour with no prior experience.
- Simple buttons to complete complex welding processes.
Stable and Reliable Trustworthy Partner Leading 80,000 hours average uptime, worry-free and
cost-effective, the most reliable partner.
- Over 100 design validation tests, 120 hours and 20+ factory tests
- Reliable supply chain with quality control from every component
- Advanced algorithms extend motor reducer life by 30%
- 2000+ dynamic parameters model to prevent "small engine big load"
Technical Specification
Model
D-SOLAR
Payload
5kg
Working radius
919mm
Weight
About 16.5kg
No of axis
6
MTBF
>80000h
Power supply
48VDC
Programming
graphical interface
Power consumption
225w
Safety
More than 21 adjustable safety features
Repeatability
±0.03 mm
Max speed
<2.0m/s
Configuration List
Name
Quantity
Brand
Robot
1
LanLyn
Cabinet
1
LanLyn
Cooler
1
Hanli
Elec.system
1
Schneider
Welding
1
LanLyn
Laser source
1
Raycus
Welding gun
1
LanLyn
Wire feeder
1
LanLyn
Q C
1
LanLyn/SGS
Will Arrange
Contact Us For Other Model And Brand
